D.Y.E. Thermal Links
Definition
Utmost protection against overheating of all electric and electronic products; protecting valuable lives, properties and a product itself from unexpected fires at the most cost-effective ways
Electrical ratings
- KC: 250V/15A
- UL/cUL: 250V/16A
(DF66S & DF216S:250V/10A) - VDE: 250V/15A
- PSE: 250V/15A
- CCC: 250V/15A
Application
From Home Appliances to Automobiles and Etc.: Hair dryers, Toaster, baker`s oven, power cord, thermo-resistor, capacitors, waste pulverizer, transformers, UPS, SMPS, power strip, sterilizer, copy machine, gas boiler, solenoid, automobiles, motors, electric humidifier, gas range, ice cream freezer, etc.

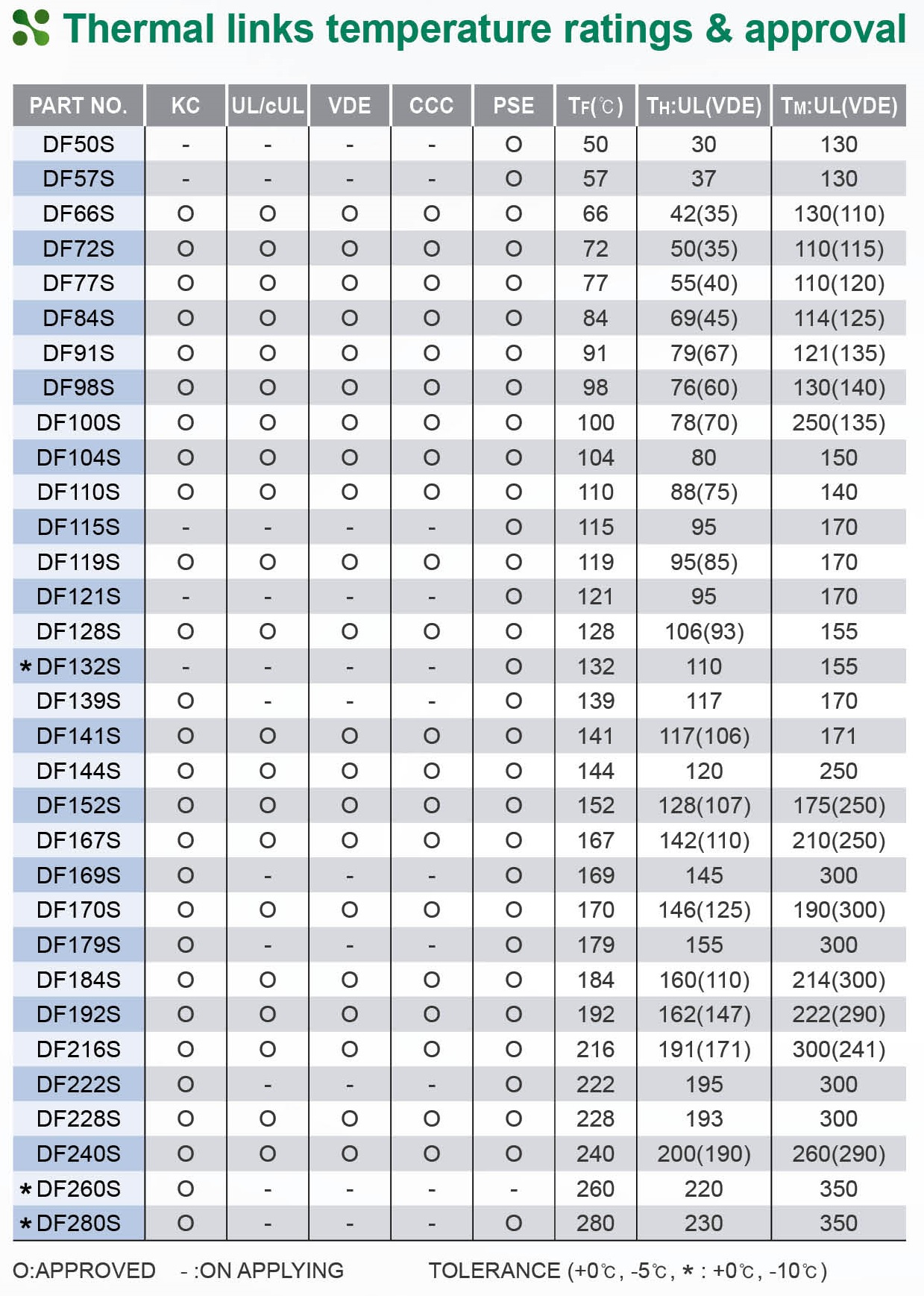

Certifications
- EK (Korea): HH05009-001A~2019A,5020A~5023A
- UL/cUL: E117626
- VDE: 40017388
- PSE: JET2926-32001-1001~1011
- CCC: 2003010205079617

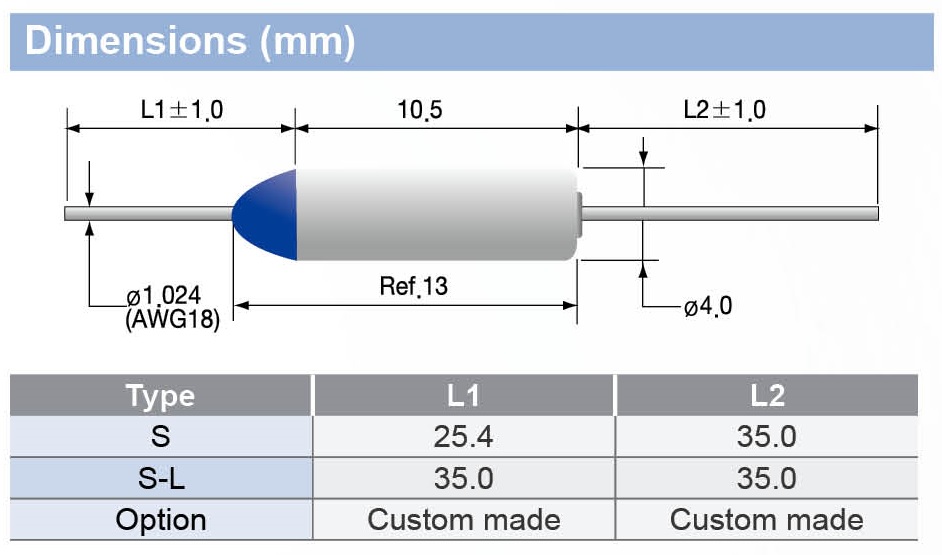

Selection in lead wire length
- Basic type: S-L
- Standard type: S
- Custom made: Extra cost applied

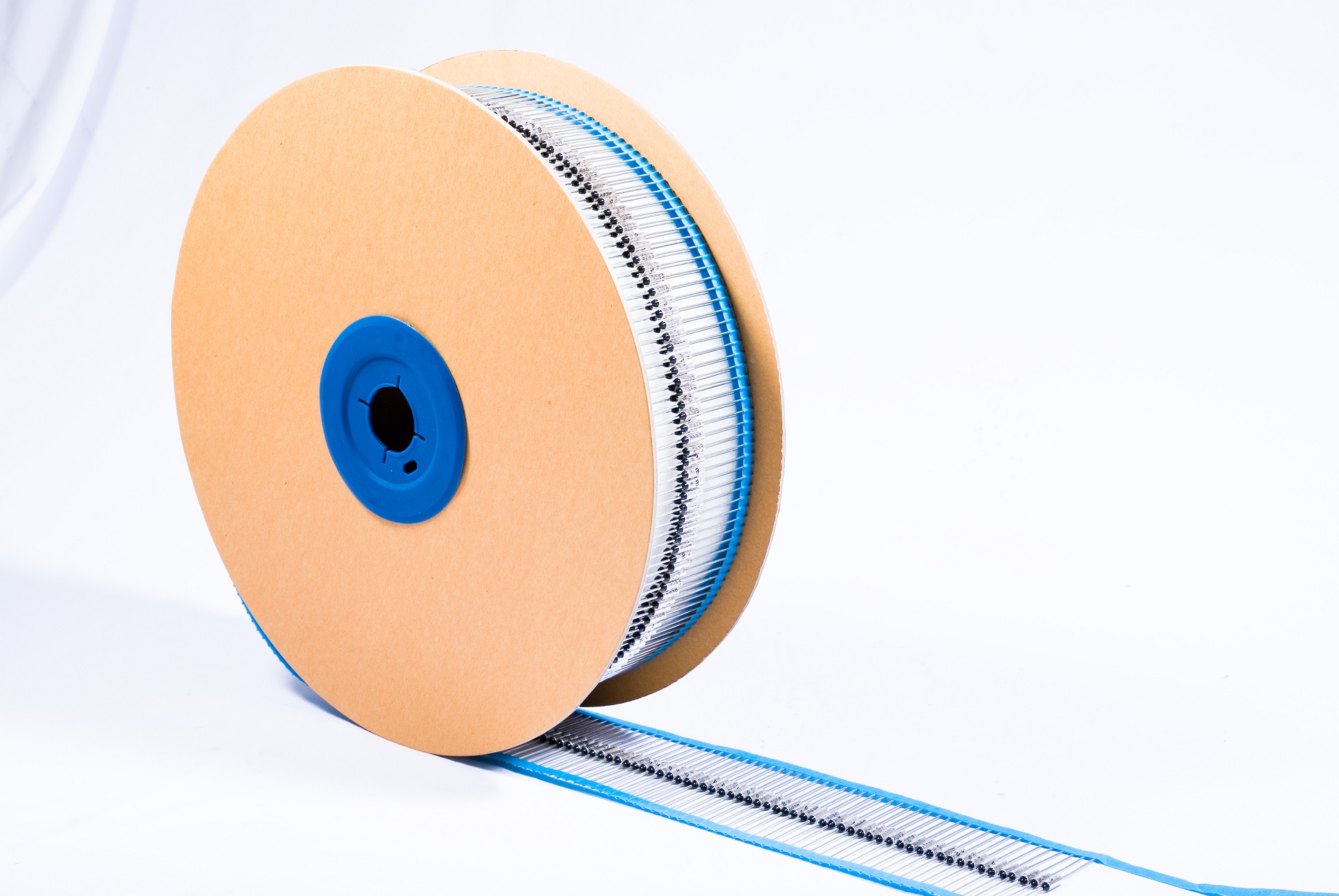

Tape & Reel
Another selection for automatic production machines.

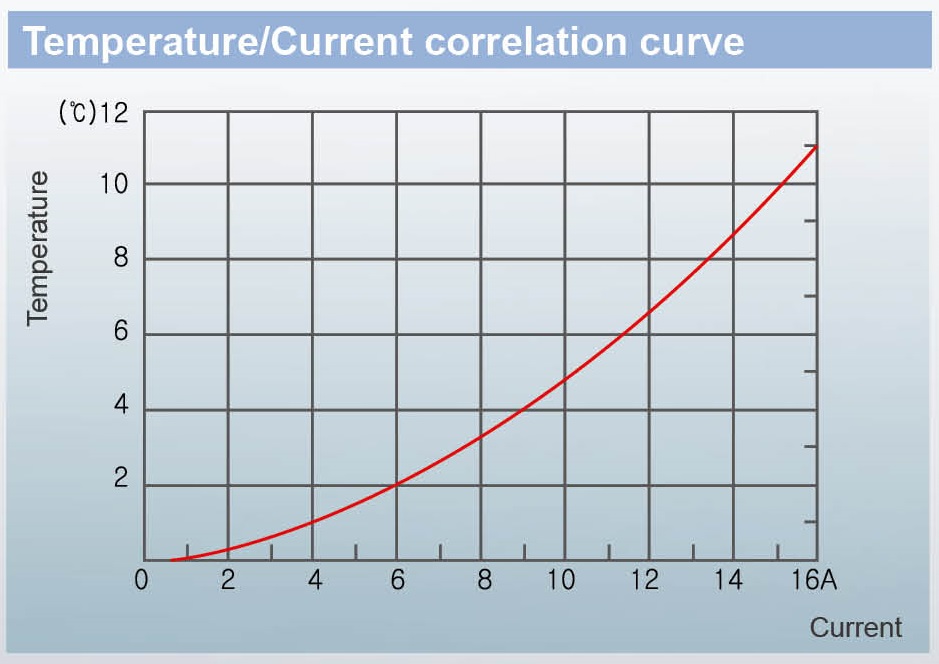

Self heating by current
Self heating environment is different in each application therefore this correlation graph should be used only as rough guideline.
